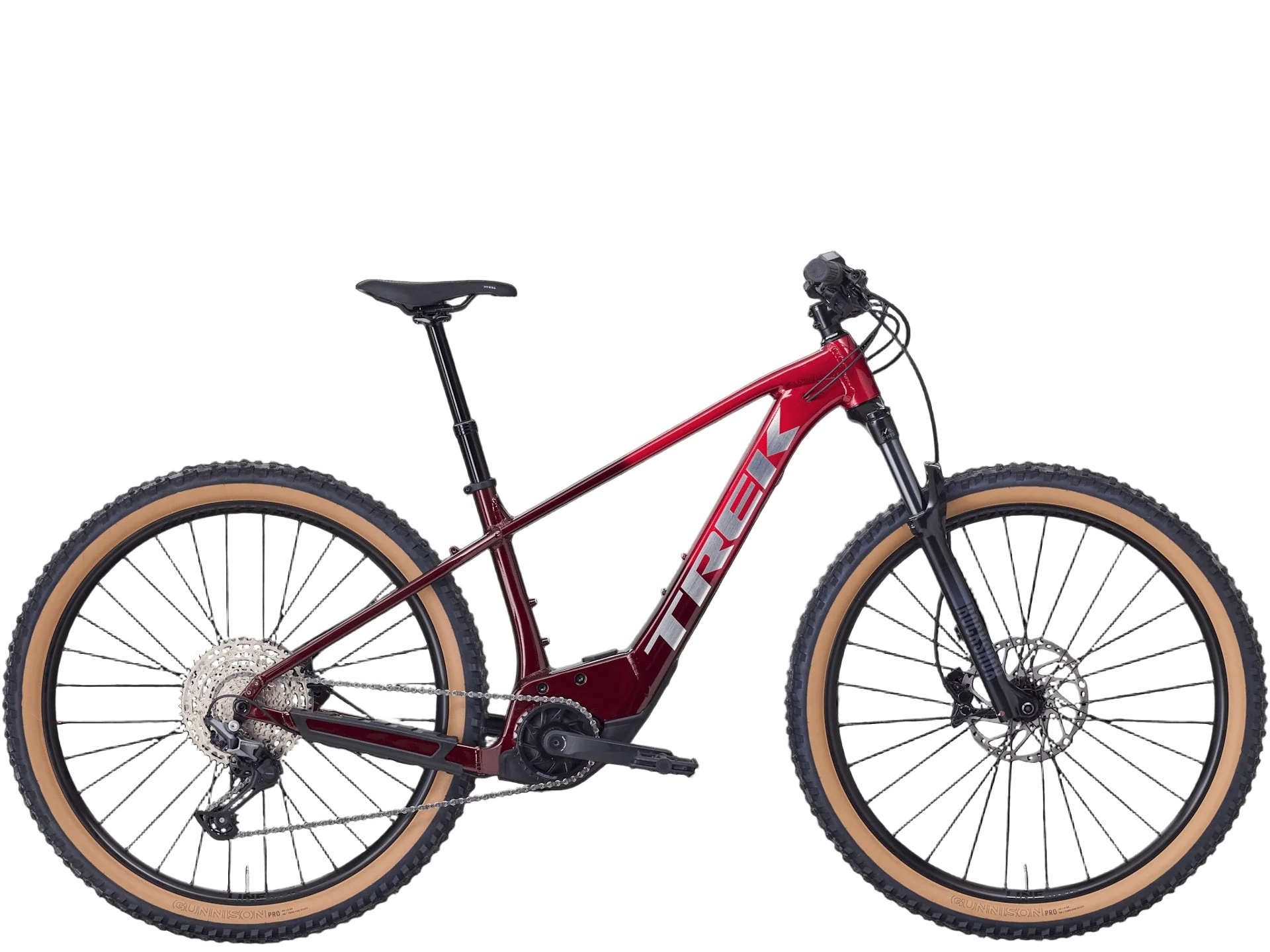

Trek Marlin+ 8 Hardtail Electric Bike 2026

Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding farther, and doesn't break the bank, and a 120mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tires and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.

SPECIFICATIONS

*Please note - spec applies to all sizes unless listed separately

Frameset
*Frame
Size: XS
Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
Size: S , M , L , XL
Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
*Fork
Size: XS
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 100mm travel
Size: S
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
Size: M , L , XL
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel

Wheels
Hub front
Shimano TC500 alloy, centerlock, 110x15mm thru axle
Hub rear
Shimano TC500 alloy, centerlock, 148x12mm thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
*Rim
Size: XS , S , M , L , XL
Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
Size: XS , S , M , L , XL
Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
*Tire
Size: XS , S
Bontrager Gunnison Pro XR, Tubeless Ready, Inner Strength sidewalls, aramid bead, 60 tpi, 27.5x2.60"
Size: M , L , XL
Bontrager Gunnison Pro XR, Tubeless Ready, Inner Strength sidewalls, aramid bead, 60 tpi, 29x2.60"
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
Frame: 29x2.60" (XS: 27.6x2.60"), Fork: See manufacturer

E-system
Battery
Bosch CompactTube 400Wh
Charger
Bosch standard 2A, 110V, smart system
Computer
Bosch Purion 200
E-bike Classification
Class 1

Drivetrain
Shifter
Shimano Deore M6100, 12 speed
Rear derailleur
Shimano Deore M6100, long cage
Crank
FSA CK-220, 165mm length
Chain ring
FSA, 32T, steel
Cassette
Shimano Deore M6100, 10-51, 12 speed
Chain
Shimano Deore M6100, 12 speed
Pedal
VP-536 nylon platform
Max chainring size
1x: 36T, min 32T

Components
Saddle
Bontrager Verse P3, chromoly rails
*Seatpost
Size: XS , S
TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length
Size: M , L
TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
Size: XL
TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length
*Handlebar
Size: XS , S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , L , XL
Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width
Grips
Trek Line Comp, nylon lock-on
*Stem
Size: XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: M , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Headset
Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom
Brake
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
Brake rotor
Shimano RT64, CentreLock, 203 mm
Rotor size
Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight
Weight
M - 21.89 kg / 48.26 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
