DYNAMIC POWER

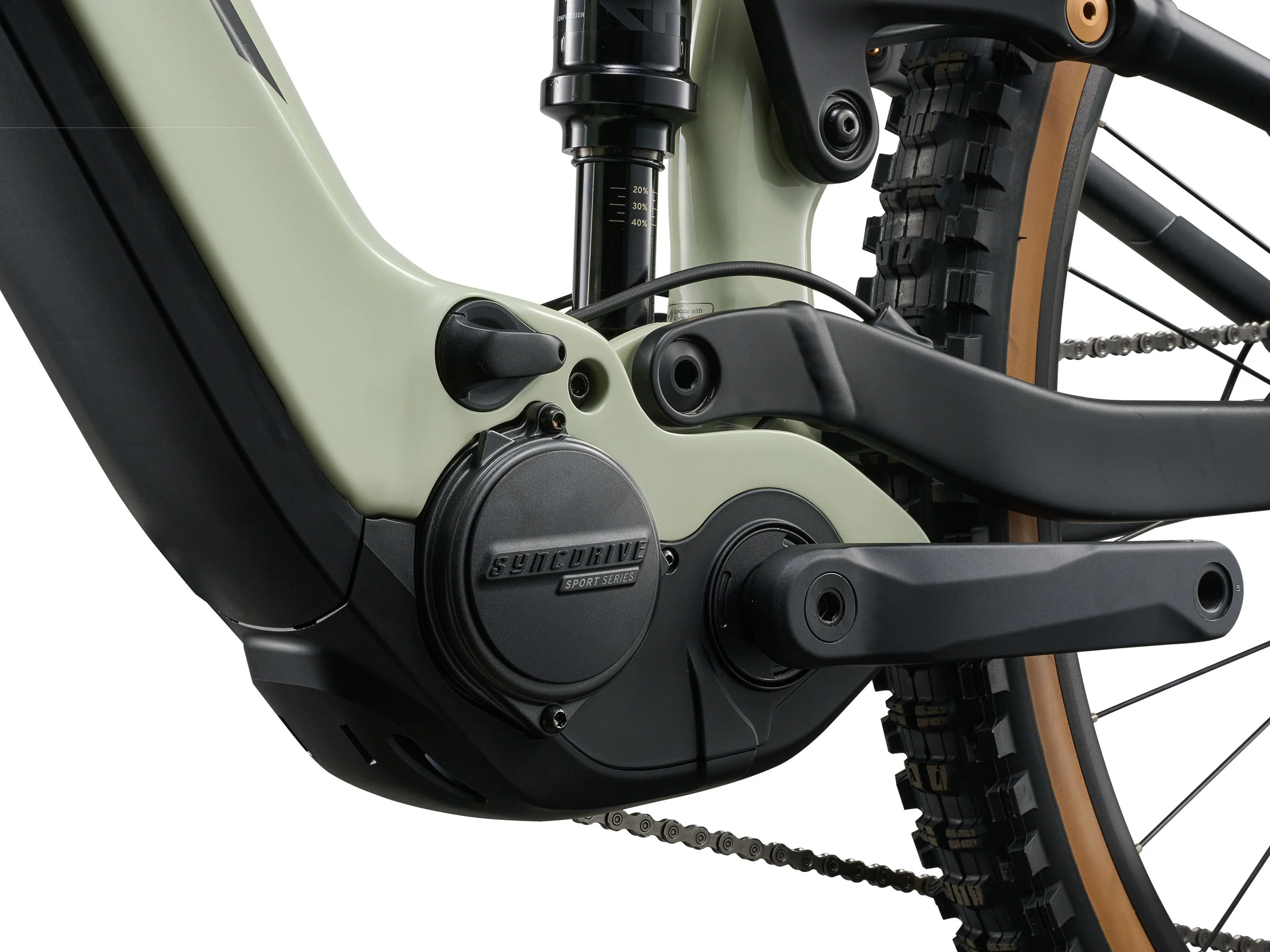

The new SyncDrive Pro 3X motor transforms the Stance E+ with a massive boost in performance. Building on the lightweight 2.6kg design of the Pro 3 motor, it delivers up to 800W of peak power with 100Nm of torque. This results in an 11% improvement in torque-to-weight ratio, providing stronger climbing performance and better control in technical terrain. It’s engineered to maintain powerful assist levels at a wide range of cadences, giving you sustained support over longer periods. Beyond the motor, rear suspension is engineered with enhanced anti-squat to minimize energy loss and improve pedaling efficiency.

TOTAL TRAIL CONFIDENCE

New FlexPoint suspension delivers 140mm of active rear travel paired with a 150mm fork for smoother, more capable handling than the previous generation’s 125/140mm setup. Updated geometry further elevates performance. A steeper 76.5-degree seat tube angle puts you in a stronger, more efficient climbing position, while a slacker 64.5-degree head tube angle and increased bottom bracket drop lower the center of gravity for greater stability and control. The result is total confidence when the trail gets fast, steep, and technical.

PERSONALIZED RIDE

From controller setup to fine-tuning motor performance, the new Giant E+ System makes it easy to customize your ride. Support modes are clearly color-coded, and the RideControl Dash 2 lets you decide exactly which data you want to see. You can run a lighter weight 625Wh battery or the longer lasting EnergyPak Smart 800 (which comes on the Stance E+ 0 and Stance E+1), and you also have the option to add an EnergyPak Plus 250Wh or 200Wh range extender for epic days out. Using the RideControl App, you can adjust power outputs and optimize your balance of torque, efficiency and range—so you’re always ready to take on whatever the trail calls for.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

Highlights

A SyncDrive Pro 3X motor delivers up to 100Nm of torque for dynamic acceleration and climbing power. The updated FlexPoint suspension system adds more travel and features reengineered kinematics to balance greater stability with maximum efficiency and control. The RideControl Dash 2 puts total control at your fingertips, letting you customize ride data and stay connected to all your ride data. And with the removable EnergyPak Smart battery system—plus the option to add extra range when you need it—you’re free to ride harder, climb higher, and go farther than ever.

SPECIFICATIONS

• Motor
  Giant SyncDrive Sport3 85Nm, PedalPlus 6-Sensor technology
• Controller
  Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels
• Display
  Giant RideControl Dash 2, full color LCD display
• Battery
  Giant EnergyPak 625Wh
• Charger
  Giant EnergyPak 4A smart charger
• Sizes
  S, M, L, XL
• Frame
  ALUXX SL-grade aluminum, 140mm travel FlexPoint linkage driven suspension system, 148x12 Boost rear axle, UDHTM Universal Derailleur hanger, KSA40 compatible, 185x52.5mm shock, 1.5~1.8" headset (ZS62/ZS72)
• Fork
  Giant STL 36 Air, 150mm travel, 5-position compression adjust, tapered steerer, 72mm crown, e-bike optimized, 110x15mm Boost axle, full fender compatible
• Shock
  Giant Crest FloTrac, 3-position lever, e-bike optimized, 185x52.5mm Sag recommendation: 30% (15.75mm)
• Handlebar
  Giant Connect TR35, 20mm Rise, 35x760mm [S], 35x780mm [M-XL]
• Grips
  Giant Tactal Pro single lock-on
• Stem
  Giant Contact SL 35
• Seatpost
  Giant Contact Switch AT travel adjust dropper seatpost (S:110~140mm, M:140~170m, L/XL: 170~200mm)
• Saddle
  Giant Contact Ergo Trail
• Pedals
  Large platform pedal, 28-pins, PP cage, Steel axle
• Shifters
  Shimano Cues LinkGlide
• Rear Derailleur
  Shimano Cues LinkGlide, 10-speed, Shadow+
• Brakes
  Tektro Orion, hydraulic disc, 4-piston, 203mm [F/R]
• Brake Levers
  Tektro Orion
• Cassette
  Shimano Cues LinkGlide, 10-speed, 11-48T
• Chain
  Shimano LinkGlide
• Crankset
  Forged aluminum crank arms
• Rims
  Giant AM30, Tubeless ready, 30mm inner width
• Hubs
  Shimano TC500 Boost, Center-Lock, 15x110mm [F] 12x148mm [R]
• Spokes
  Stainless Steel
• Tires
  Maxxis Minion DHF 29X2.50" WT Foldable, TLR, EXO [F] Maxxis Dissector 29X2.40"" WT Foldable TLR EXO [R]
• Lock
  Torx 25 Battery Lock with built-in Torque limiter
• Fender/Chainguard
  MRP 1x HD guide, CS e-Mount, 32~38T Adjustable
• Max Chainring Size
  Direct-mount steel 36T (maximum: 38T)
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
