Smart support

The new SyncDrive Core 2 55Nm motor has Smart Assist mode, which uses sensors to constantly determine and deliver the optimal level of support by automatically adjusting power output.

Comfort and control

A step-thru frame design with a 63mm suspension fork, suspension seatpost, powerful disc brakes and extra-wide 55mm tires combine for smooth confidence and control on a variety of road surfaces and conditions.

HEAD TUBE CHARGE PORT

Newly designed charge port has been relocated from the motor mount to the head tube. This higher placement offers easier access and convenience for charging the battery.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

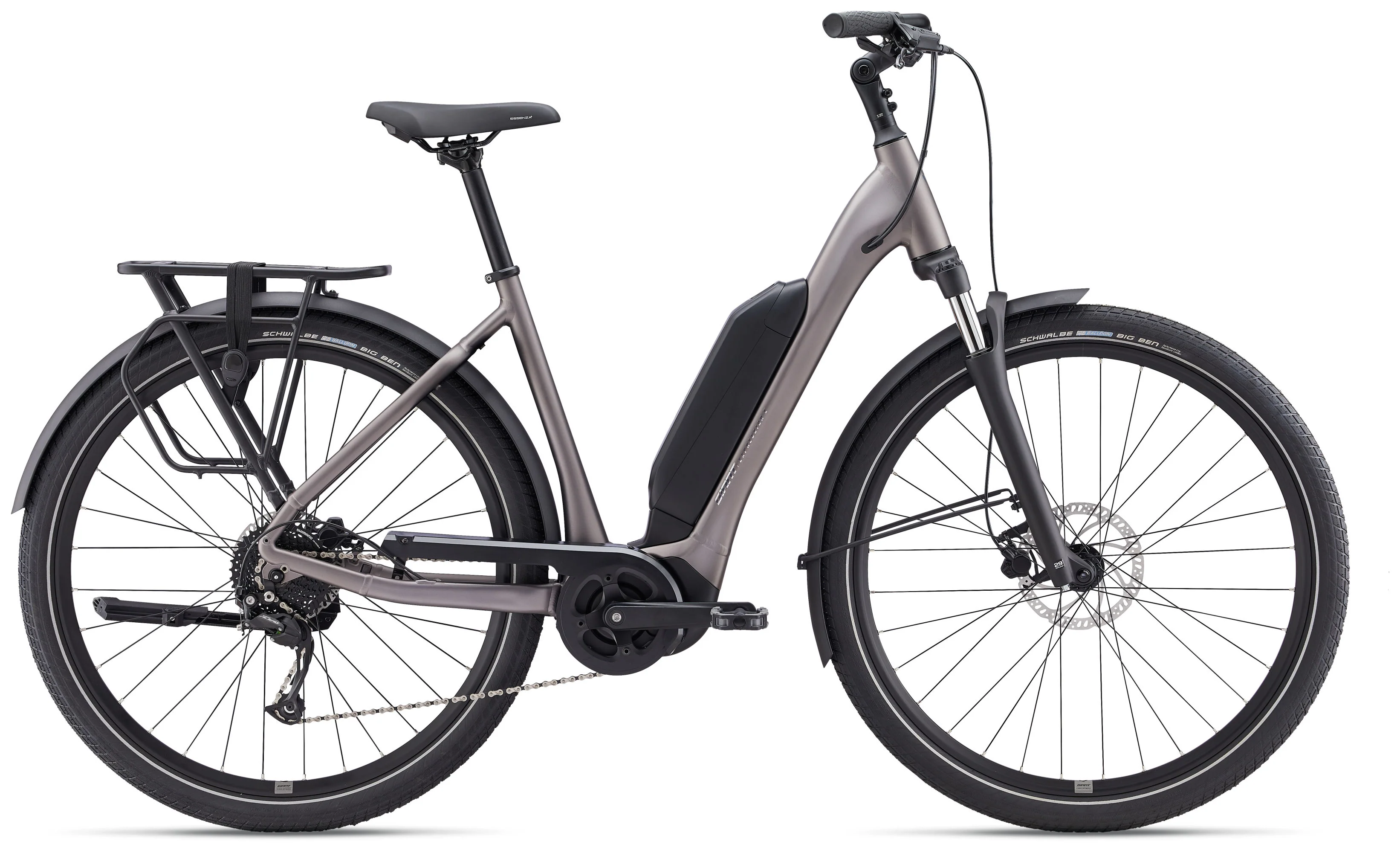

Highlights

This low-step through E-bike features the new Syncdrive Core2 55Nm, a compact and lightweight motor that’s ideal for commuters and recreational riders. It delivers 55Nm of torque and utilizes Smart Assist technology, which features six sensors including slope detection and an accelerometer to produce the precise amount of power needed at all times. The result is a quiet, natural ride experience. A suspension fork helps smooth out rough roads.

SPECIFICATIONS

• Motor
  SyncDrive Core2, 55Nm, powered by Yamaha
• Controller
  RideControl Ergo, 5 power levels plus Smart Assist auto mode
• Display
  N/A
• Battery
  EnergyPak 500Wh, CO2 neutral production
• Charger
  EnergyPak 4A smart charger compact, 60% in 2:30h
• Maximum speed
  32km/h
• Sizes
  S, M, L
• Colours
  Black Currant, Early Espresso
• Frame
  ALUXX-grade aluminum, 1.125" head tube, semi-integrated battery, KSA18 kickstand mount
• Fork
  SR Suntour Mobie A32 DC coil spring, 63mm, 15x100mm thru-axle
• Shock
  N/A
• Handlebar
  Alloy, mid-rise, 31.8mm
• Grips
  Giant Comfort Ergo Microtech Plus lock-on
• Stem
  Alloy angle adjustable
• Seatpost
  Giant forged alloy, 30.9mm, 2-bolt micro adjustable
• Saddle
  Selle Royal Vivo Essenza Plus
• Pedals
  platform
• Front Derailleur
  N/A
• Rear Derailleur
  Shimano Alivio RD-M3100
• Brakes
  Tektro HD-M275, hydraulic Tektro TR-52 rotors, [F] 180mm, [R] 160mm
• Brake Levers
  Tektro HD-M275
• Cassette
  Shimano Alivio, 9-speed, 11x36
• Chain
  KMC e.9 Sport, e-bike optimized
• Crankset
  forged alloy, 38t
• Bottom Bracket
  N/A
• Rims
  Giant GX03V, alloy, 700c
• Hubs
  Shimano [F] HB-TC500 100x15mm thru-axle, [R] Shimano FH-QC300-HM 135mm QR
• Spokes
  stainless
• Tires
  Schwalbe Big Ben, 622x55, RaceGuard, ADDIX, wire bead w/ Reflective
• Extras
  fenders, KSA18 direct mount kickstand, MIK HD rack system - bag & basket compatible
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
