Radio Griffin AM 26" Dirt Jump Bike

A truly exceptional bike, bettering itself year on year - the Griffin is built on to a competition spec 6061-T6 Alloy frame, and boasts components from Maxxis, RST, Tektro, Race Face and FSA.

SPECIFICATIONS:

FRAME: RADIO "GRIFFIN" frame, 6061-T6 alloy, tapered head tube, forged yoke
FORK: RST "DIRT RA" fork, 100mm travel
BARS: RADIO "ASURA" bar, 6061-T6 alloy, 31.8mm
GRIPS: RADIO "FREQUENCY XL" grips, flangeless, 160mm
STEM: RADIO "ZOOM" frontload stem, alloy, 40mm reach
HEADSET: FSA "NO.42/ACB-A" integrated A-headset, 1-1/8"-1.5"
GYRO: -
LEVER: TEKTRO "RS-360A" front lever / TEKTRO " HD-M275" rear lever
BRAKES: TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front / TEKTRO " HD-M275" hydraulic disc brake, 160mm rotor, rear
CRANKS: SALTPLUS "ULTRA" 3pc crank, TSS, crmo, 170mm, 8 spline
BB : RADIO "BSA19" bb set, sealed bearing
PEDALS: RADIO "SLIM" pedals, nylon/fiberglass
CHAIN: SALT "AM" chain, WZ1 type
SPROCKET: SALT "GATEWAY" sprocket, alloy, 25t
DRIVER: cassette driver, 10t, sealed bearing
FRONT HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h
REAR HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s crmo axle, 32h
FRONT RIM: RADIO "DB32" rim, double wall
REAR RIM: RADIO "DB32" rim, double wall
SEAT: RADIO "DJ" combo seat, medium padded
SEAT POST: -
SEAT CLAMP: RADIO "QUICK RELEASE" seat clamp, alloy
TIRES: MAXXIS "DTH" tires, 2.3", front & rear
PEGS: -
WEIGHT: 13.01kg / 26.68lbs

FRAME GEOMETRY:

TOP TUBE LENGTH: 22.6"
CHAIN STAY LENGTH: 15"
HEAD TUBE ANGLE: 69°
SEAT TUBE ANGLE: 72°
BOTTOM BRACKET HEIGHT: 20mm drop
STANDOVER HEIGHT: 11"

HANDLEBAR GEOMETRY:

RISE: 50mm
WIDTH: 760mm
BACKSWEEP: 8°
UPSWEEP: 3°

Dirt Jump Bikes

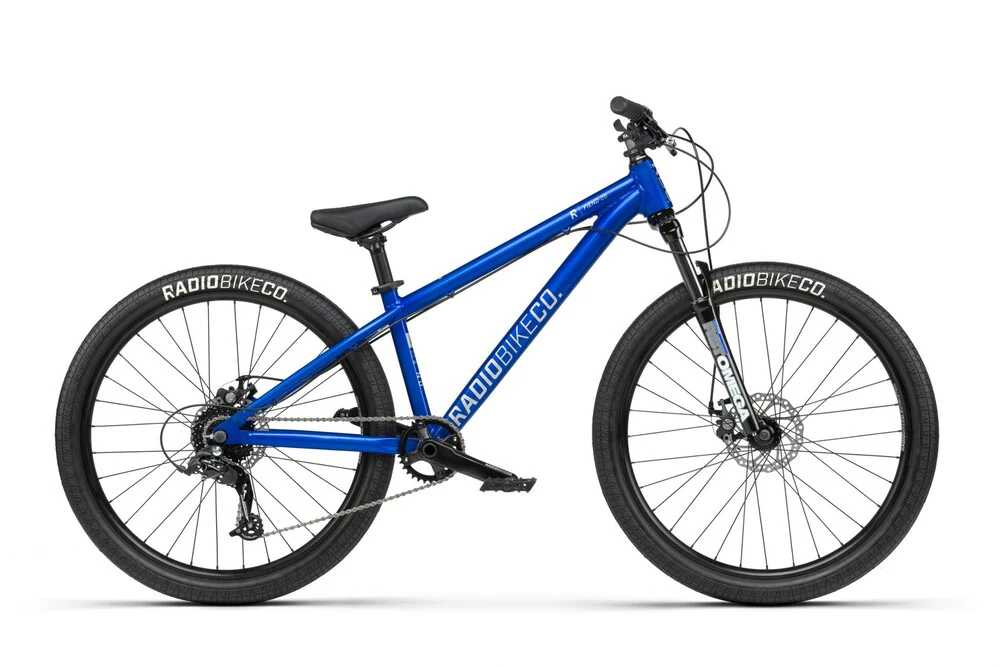

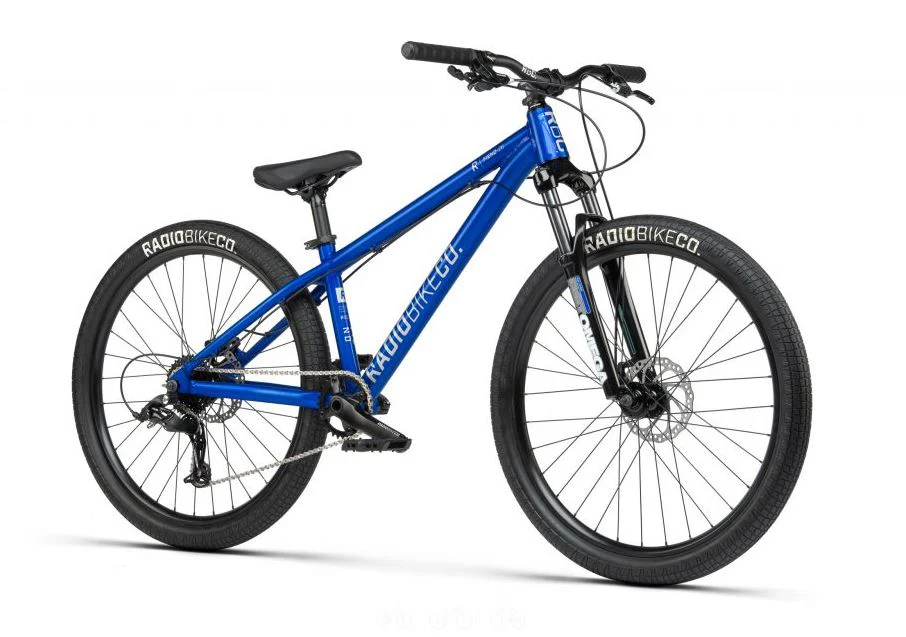

Radio Fiend 26" Dirt Jump Bike
